EFP 65 TB Door System

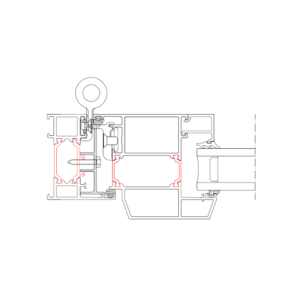

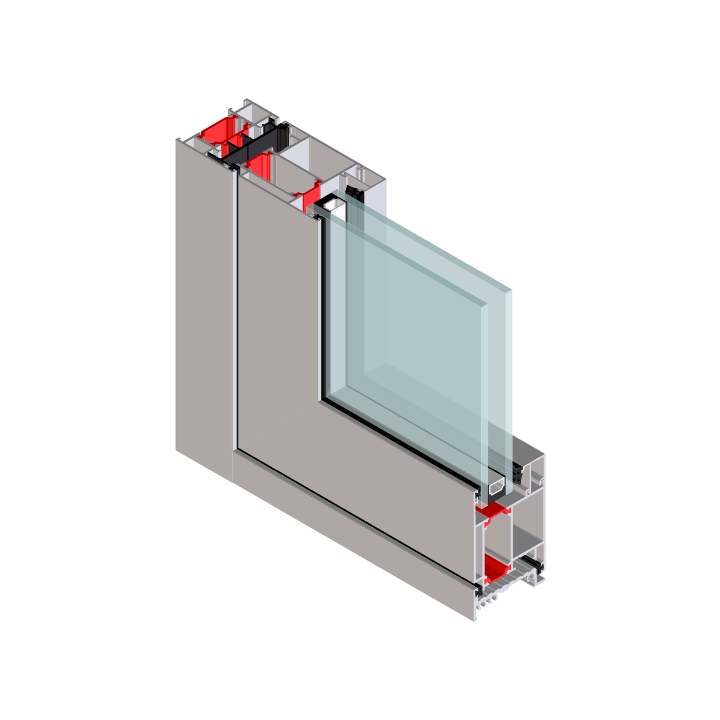

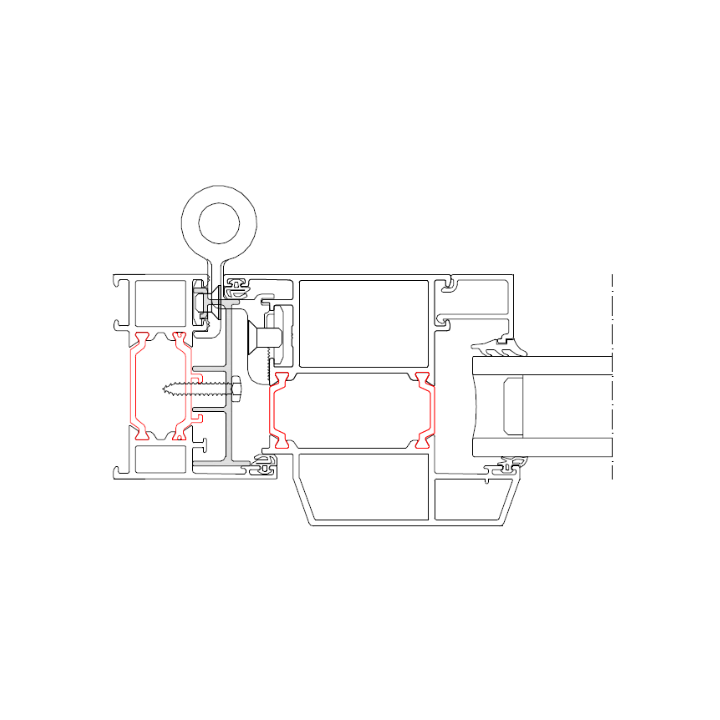

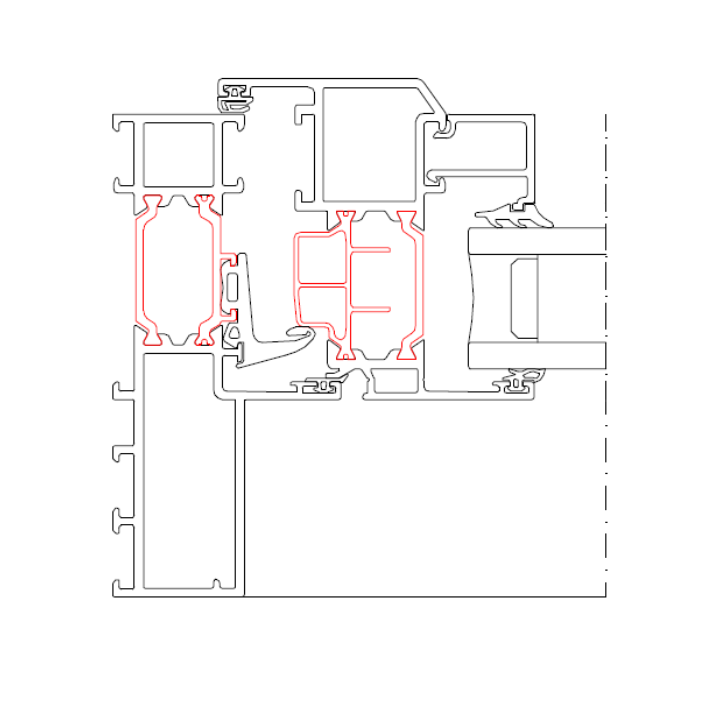

EFP 65TB Door Systems is a thermally broken and fully drained & pressure equalized system, open in or open out, glazed from inside or outside. Frames, transoms/mullions from 24mm up to 50mm and vents from 40 mm up to 50mm within our standard range.

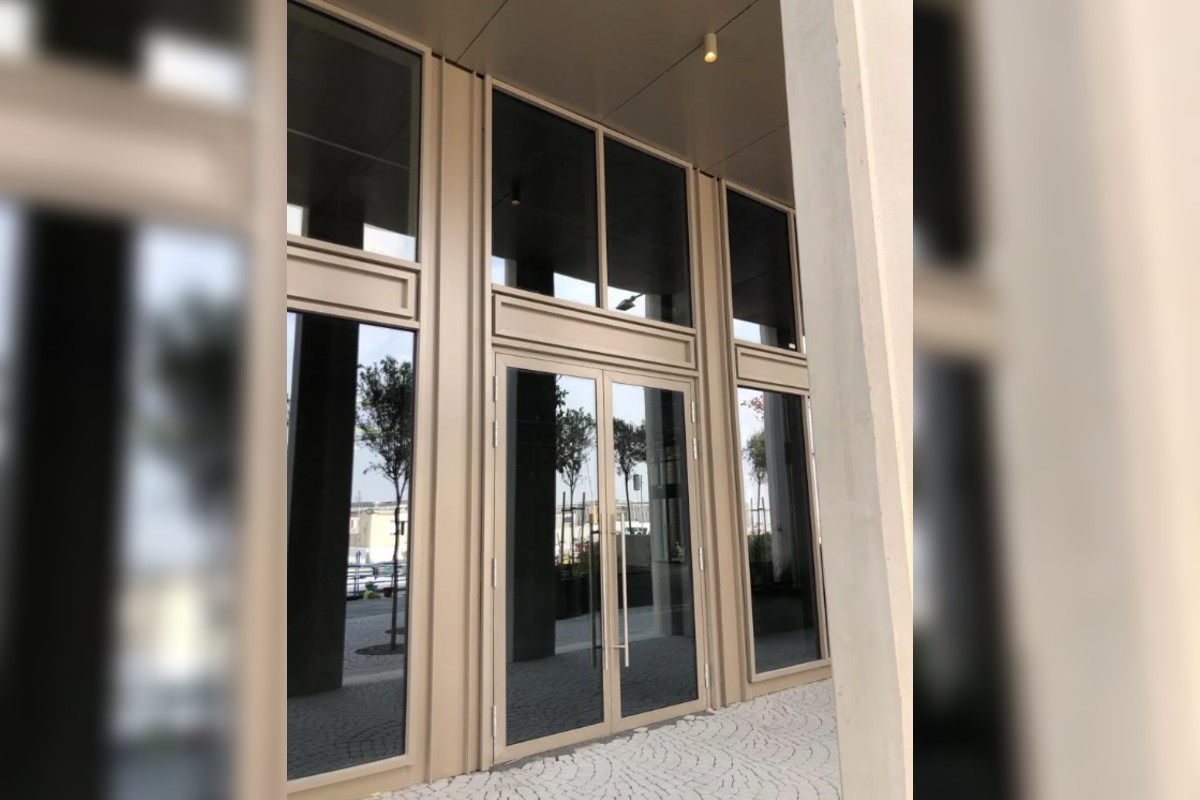

Various door types can be constructed. Like single or double doors, swing doors, folding doors, automatic and full glass doors. Available with or without threshold.
Classifications:
Air permeability: Class 4
Water tightness: Class E 1200
Wind resistance: Class C5
(2000 Pa design-3000 Pa safety)
- Fully drained & pressure equalized.
- Euro groove for unrestricted choice of hardware.
- Frame + vent same glazing depth (55mm).
- Glazing thickness from 4 up to 50mm.
- Door height up to 2700mm, heavy duty series up to 3000mm
