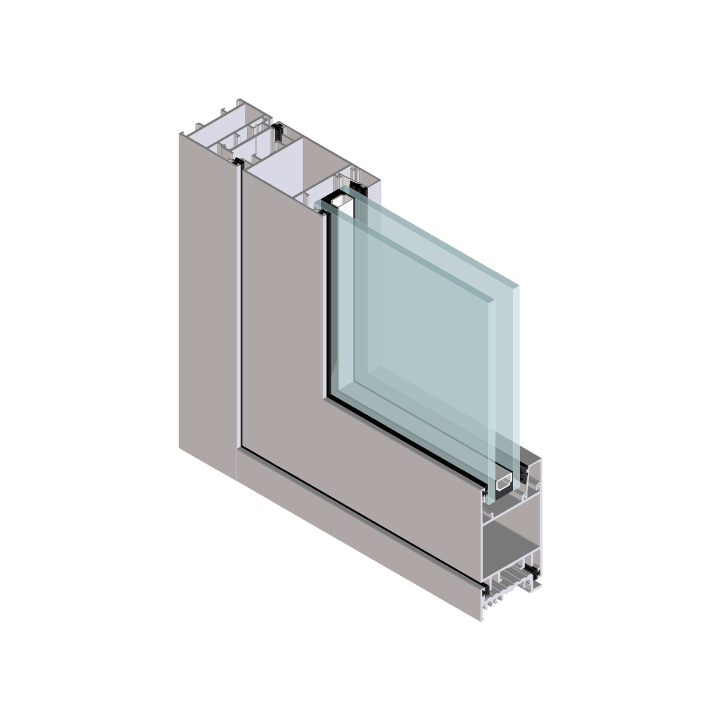

EFP 55 Door Systems

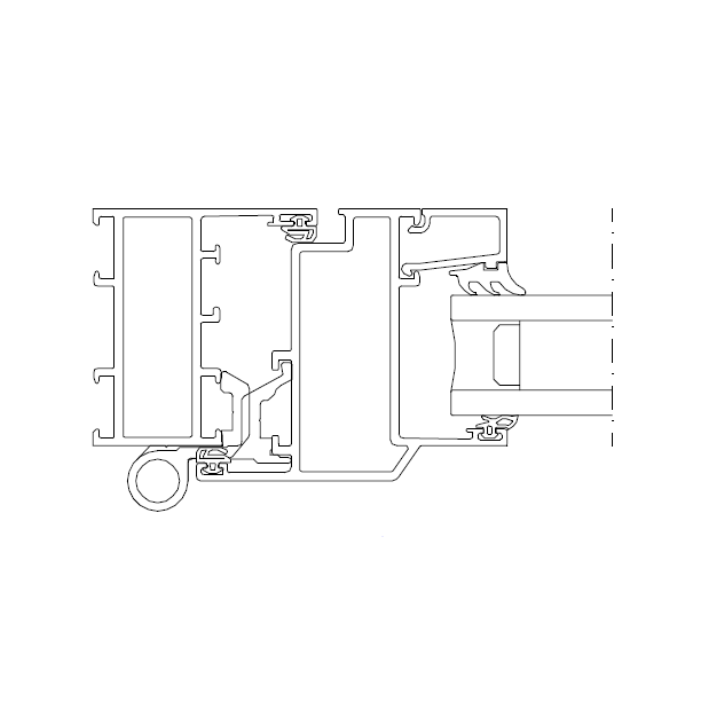

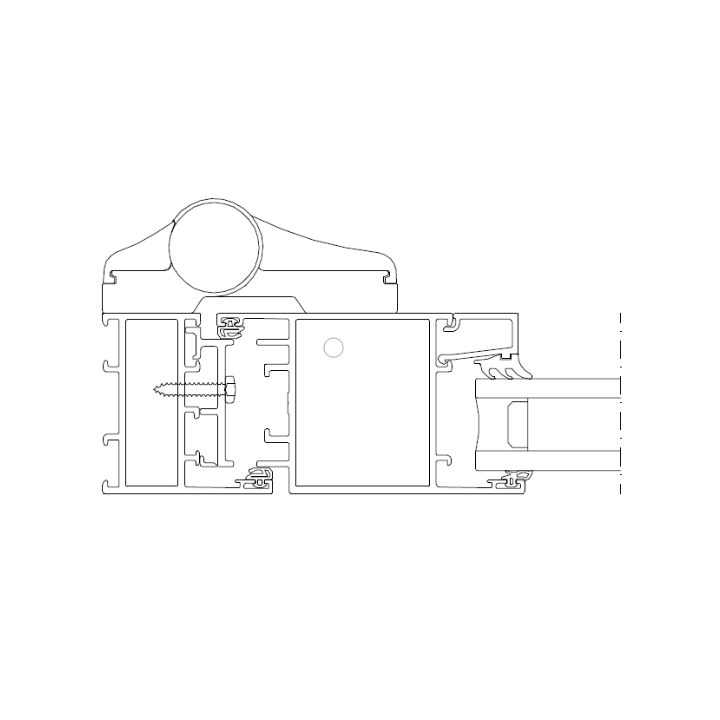

EFP 55 Door Systems is a fully drained & pressure equalized system, open in or open out, glazed from inside or outside. Frames, transoms/mullions from 24mm up to 50mm and vents from 40 mm up to 50mm within our standard range.
Various door types can be constructed. Like single or double doors, swing doors, folding doors, automatic and full glass doors. Available with or without threshold.
Classifications:
Air permeability: Class 4
Water tightness: Class 9A
Wind resistance: Class C4
(1600 Pa design-2400 Pa safety)
- Fully drained & pressure equalized.
- Euro groove for unrestricted choice of hardware.
- Frame + vent same glazing depth (55mm).
- Glazing thickness from 4 up to 40mm.
- Door height up to 2800mm
